The Shops at Legacy, Plano, Texas (2008) |

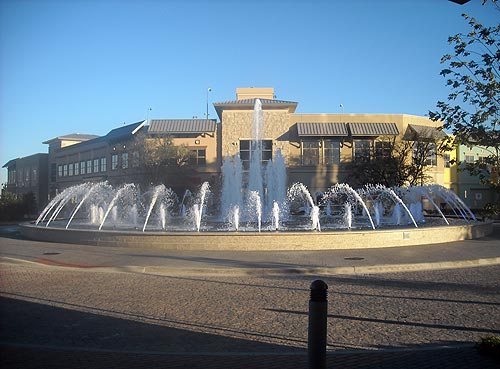

This fountain is the centerpiece of the new
mixed use development called “The Legacy”. The fountain is a musical
show type, running shows at night and acting as a static display during
the day. The sound is piped to flush grates around the fountain and to

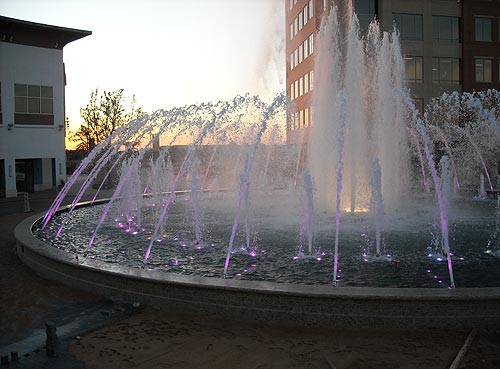

area speakers throughout the site. Effects include a single center nozzle that shoots 75’ high, eight individually controlled Geyser nozzles around the center, 36 individually controlled Geyser nozzles around that, and 36 parabolic Frothy nozzles around the perimeter powered by a single 100 horsepower pump. The center nozzle uses nine 500watt incandescent lights, while all other effects use 360 DMX controllable color changing LED lights. 12 pumps reside in a buried vault and 36 1hp submersibles are in the fountain. |
|
